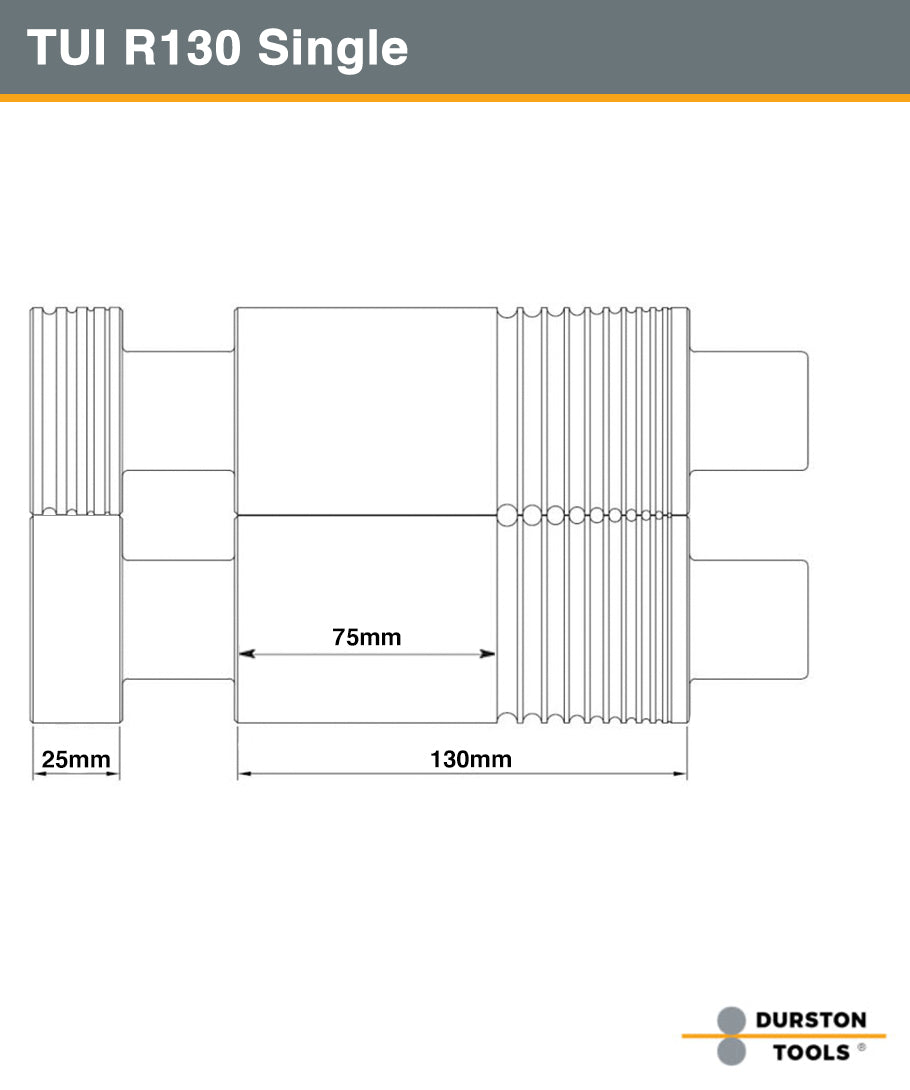

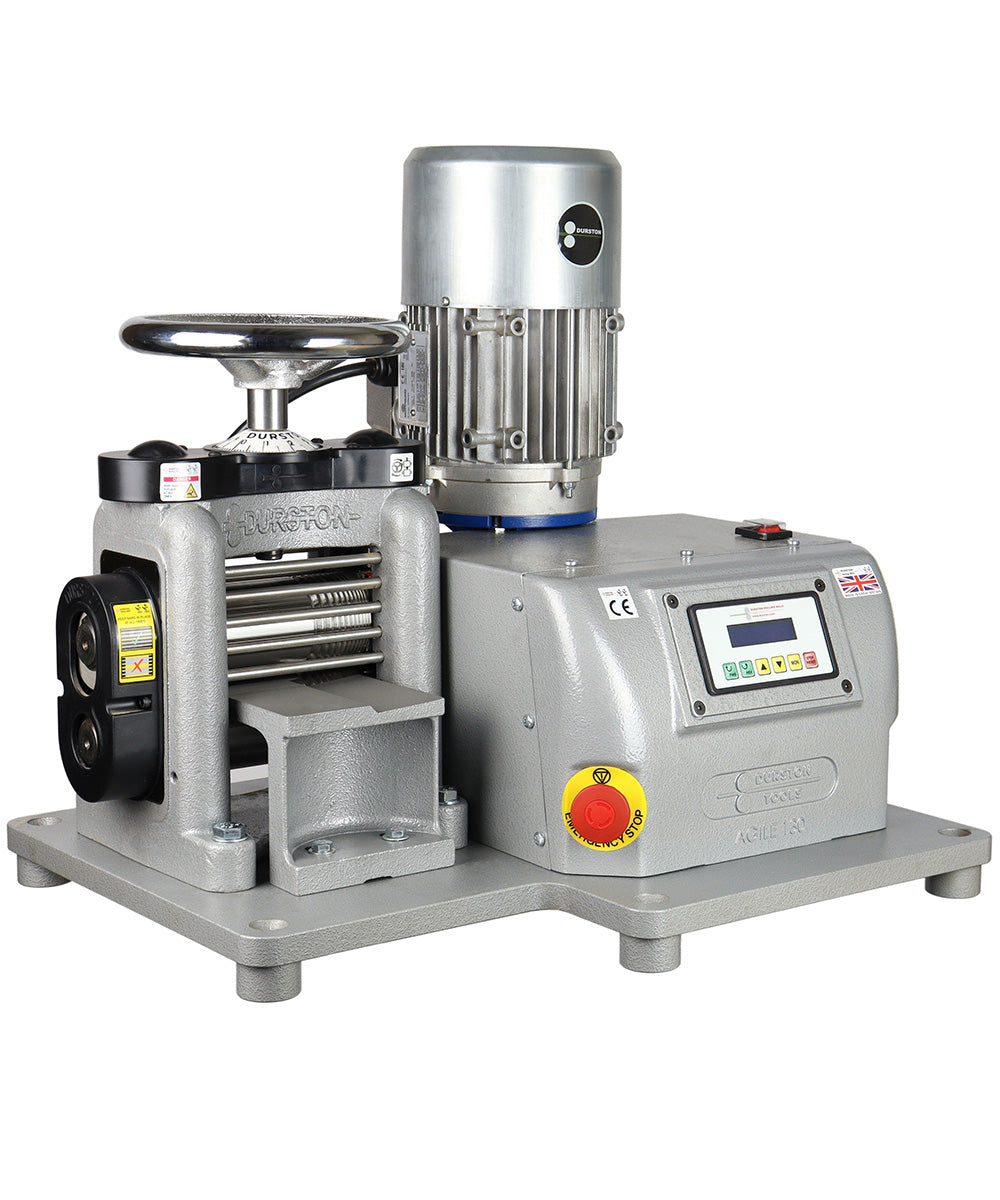

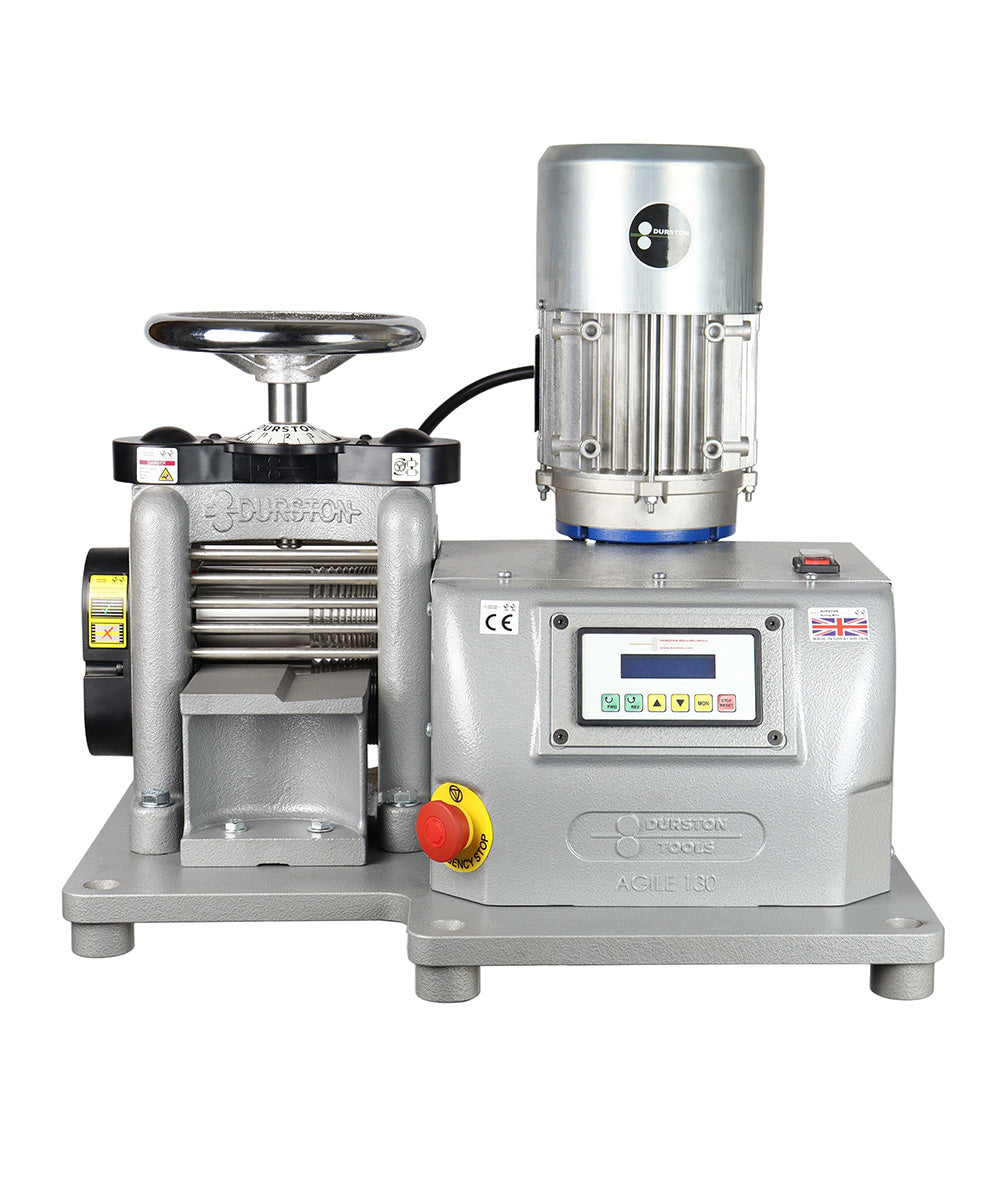

TUI R130 Single Sided Powered Rolling Mill from Durston Tools. As with all Durston Tools’ powered mills, the TUI R130 has variable speeds in forward and reverse plus side extensions securely stored behind black guards. The rolls themselves are combination rolls including 10 round wire grooves from 10mm to 1mm and a 75mm flat rolling surface to create a perfect finish every time. The 1.1KW 110-volt motor provides consistent power through the lifetime of the mill. Digitally controlled variable speeds from 5 to 20 RPM means you have complete control over each roll and the side extensions provide four half rounds of 4, 3, 2, 1.5 mm for additional versatility.
Durston Tools’ TUI Powered Rolling Mill range creates the same quality and output you expect from Durston Tools’ powered mills but at a lower cost. Where it matters the same components are used from the Core DRM range, such as the actual mills, rolls and casting gears. The cost savings are made by replacing the cast iron plate and main guard with steel and by having one central emergency stop button.
The same standards of production and manufacturing are applied to the TUI range as you have come to expect from Durston Tools’ range.
Notes on Round Wire Rolling
The grooves in the rolls are ideal for reducing and shaping wire, though they will not form a perfectly round profile when fully closed. The final shape may vary slightly, and a small fin can sometimes appear on either side. This can be reduced by opening the rolls a little and turning the wire 90 degrees between passes. For a precise round finish, many users choose to follow with a drawplate.
Additional or Replacement Extension Rollers available for this model:
Extension Roller 8, 6 & 3mm for Power Mills
Extension Roller 10 & 7mm for Power Mills
Extension Roller 4, 3, 2 & 1.5mm for Power Mills (Included as standard)
Extension Roller Plain for Power Mills (Included as standard)
Please read our Rolling Mill FAQs tab for more information.
