Durston

Mini C100E

Mini C100E

Regular price £802.80 GBP
Regular price Sale price £802.80 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Mini C100E Combination Rolling Mill Features & Benefits

  • ‘C100’ Combination Rolling Mill
  • ‘E’ Side Extension with 4 Half Round Grooves (4-1.5mm)

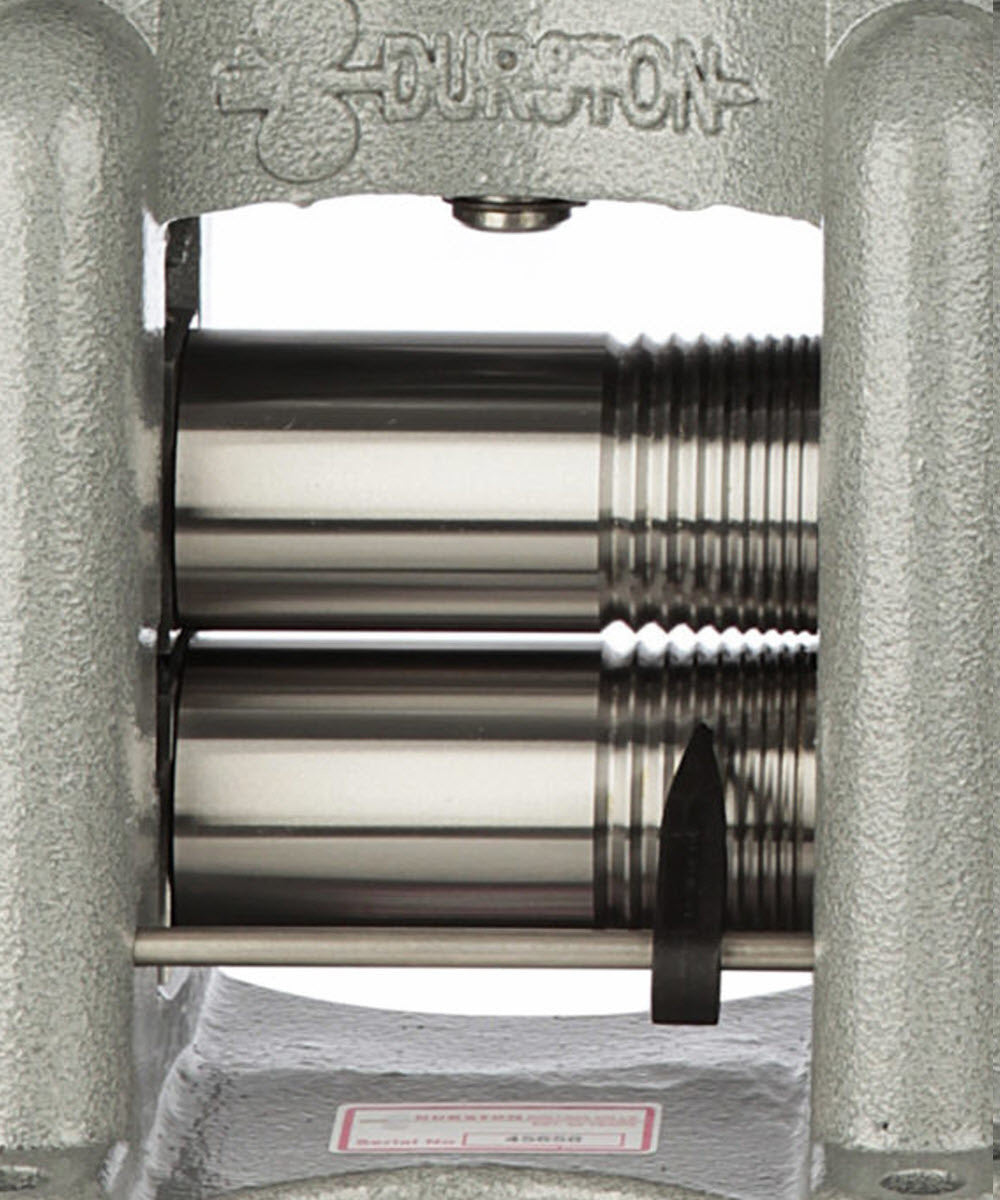

  • 9 Wire Rolling Grooves 6.5mm to 1mm
  • Maximum Sheet Thickness of 5mm
  • Maximum Wire Capacity 6.5mm

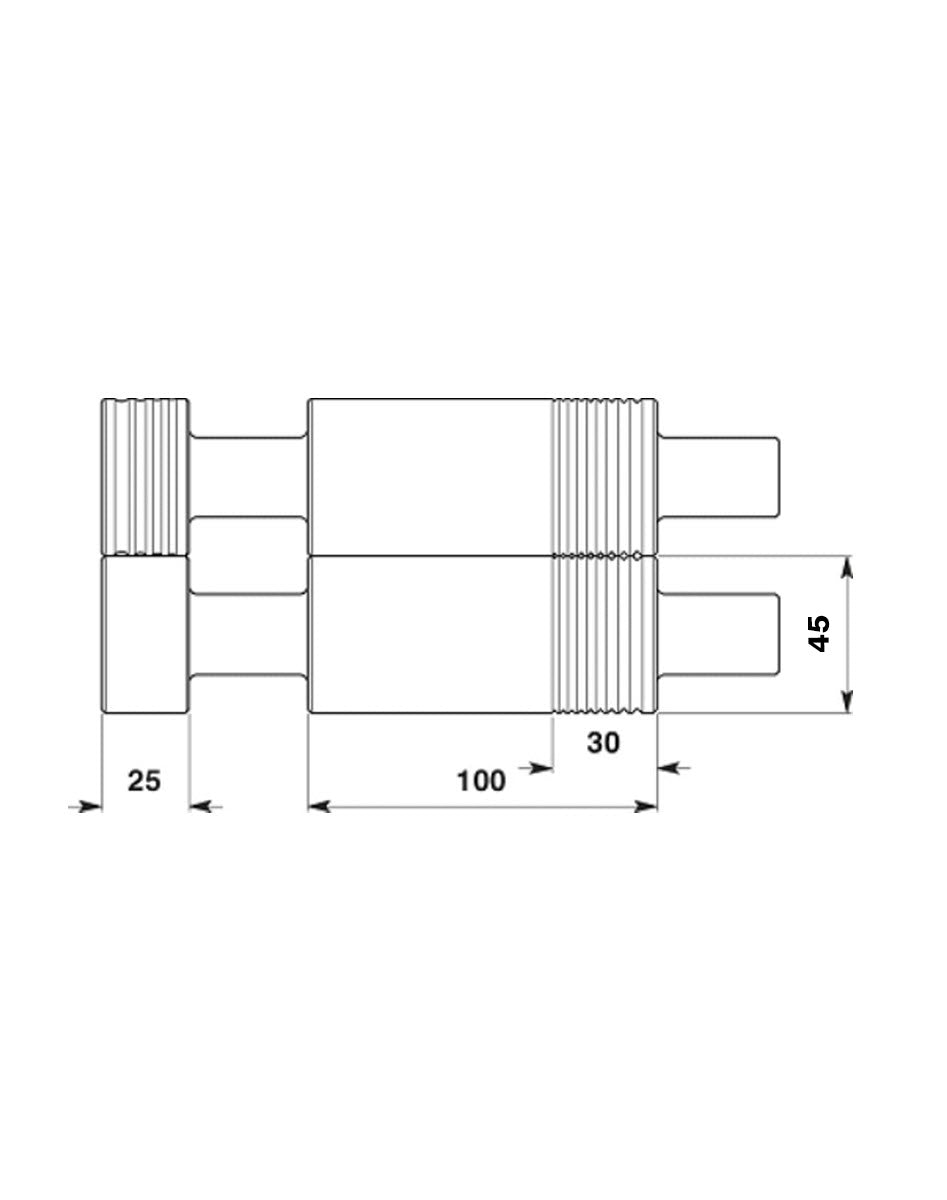

  • Roll Diameter 45mm
  • Roll Width 100mm (70mm / 30mm)
  • Direct Drive

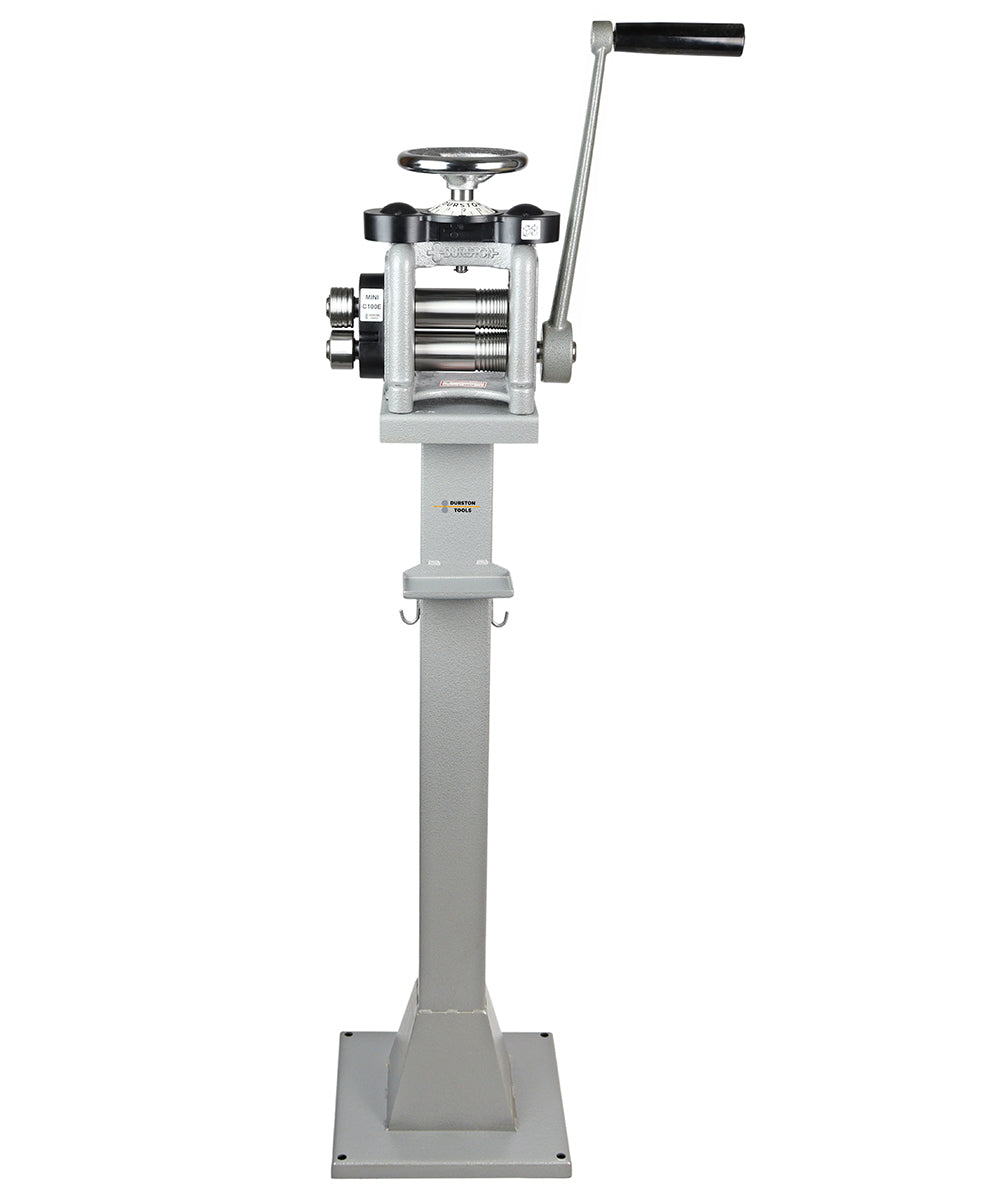

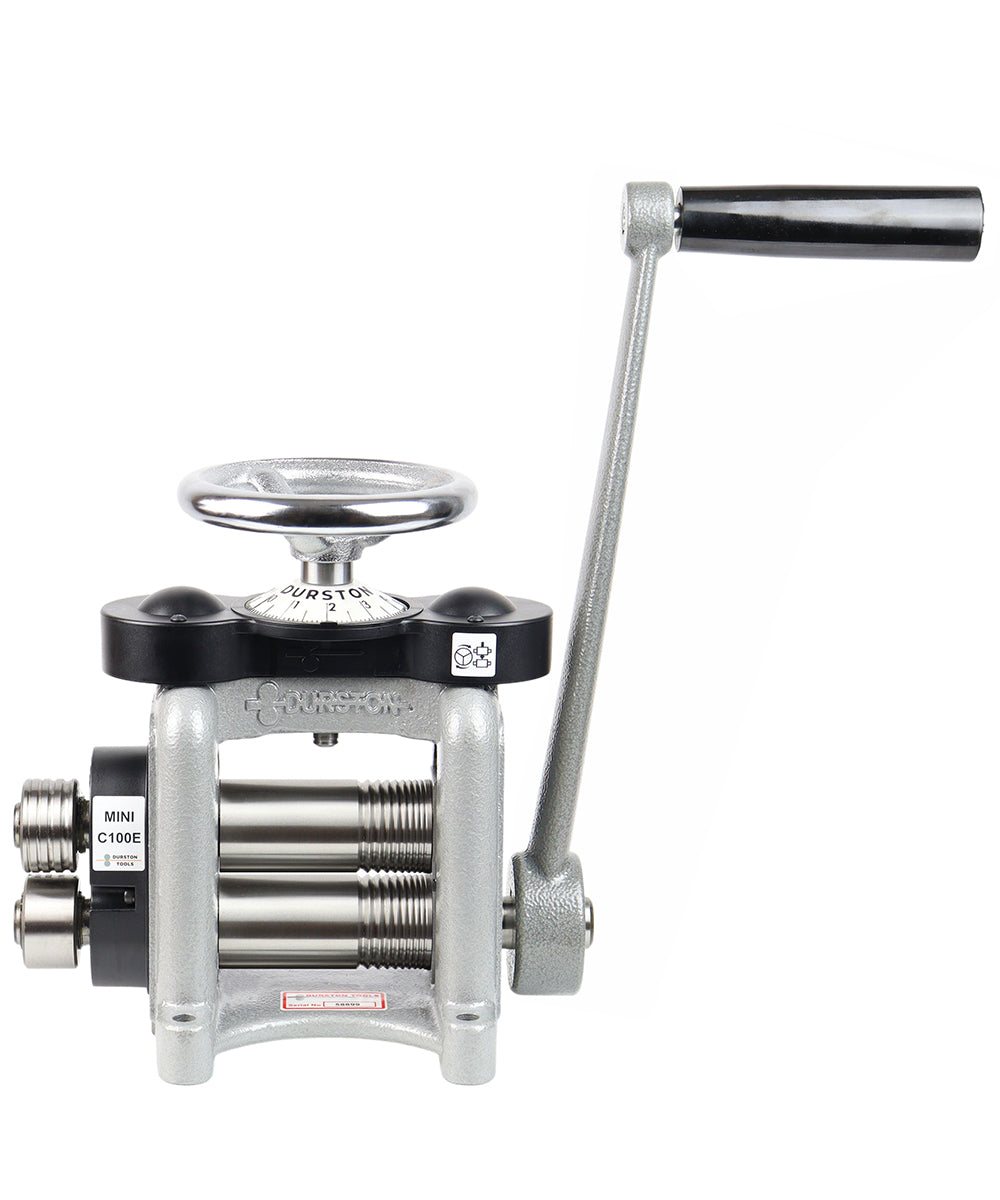

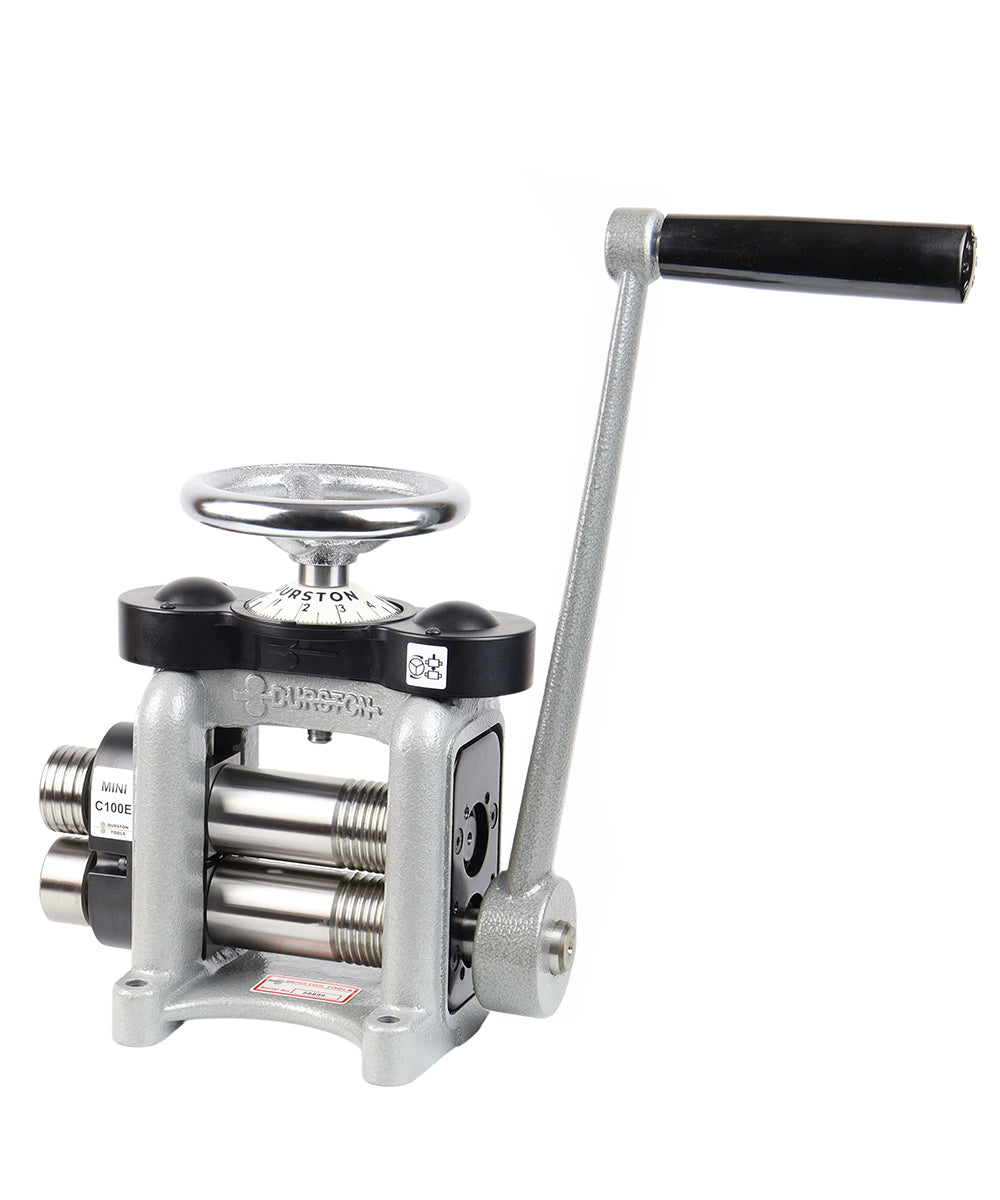

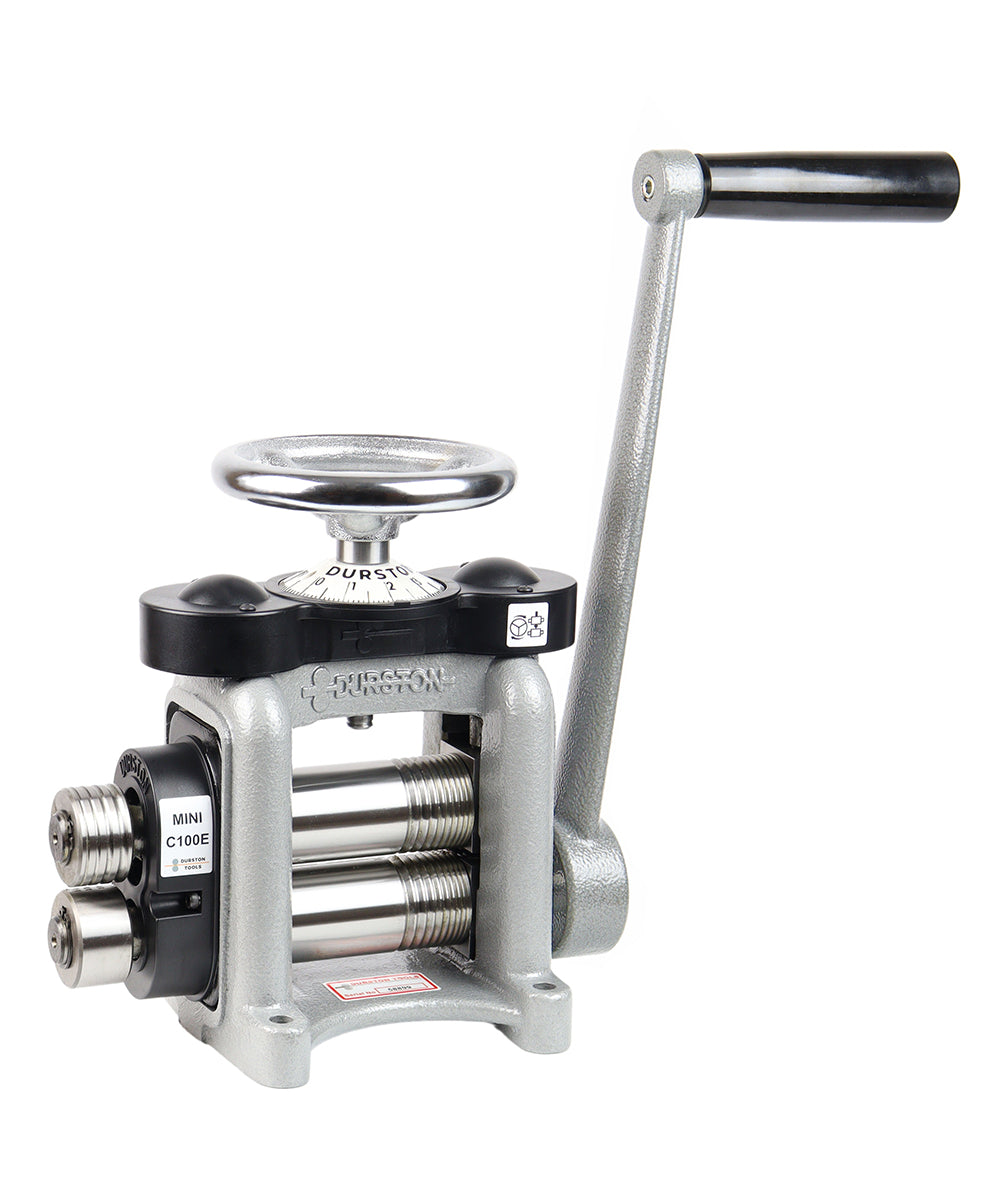

The Durston Mini C100E Rolling Mill is the big brother combination rolling mill to the Mini 80. It is an economic mill combining low price with a significant degree of versatility, with a milling width of 100mm. Its one piece cast iron construction is designed and manufactured for maximum strength and rigidity. Its maintenance-free bearings, and direct drive means a lifetime of consistent rolling. Taking a maximum sheet thickness of 5mm and the maximum wire thickness of 6.5mm, the Mini C100 benefits from 9 wire grooves consistently rolling your wires from 6.5mm to 1mm. The Mini C100 also helps from four half-round extension rollers to increase the versatility of your mill and has large and comfortable-to-read calibrated discs and a wheel on the top for ease of use. The Mini C100E Rolling Mill from Durston is guaranteed to give you a lifetime of performance.

Additional Resources:

Additional or Replacement Extension Rollers available for this model:
Extension Roller 8, 6 & 3mm for Mini Mills
Extension Roller 10 & 7mm for Mini Mills
Extension Roller 4, 3, 2 & 1.5mm for Mini Mills (Included as standard)
Extension Roller Plain for Mini Mills (Included as standard)
Please read our Rolling Mill FAQs tab for more information.

Manual Rolling Mill Comparison Chart.Quickly see the differences between our manual rolling mills in one clear chart.View the comparison chart here.
Weight 15.5 kg
Dimensions 40 × 26 × 38 cm
Product Weight (kg)

15.5KG

Product Length (mm)

280

Product Width (mm)

170

Product Height (mm)

270

Gearbox

Direct drive

Number of Grooves

9

Max. Sheet Thickness (mm)

5

Roller Type

Combination

Roller diameter (mm)

45

Roller Length (mm)

100

Side Extensions

4, 3, 2, 1.5mm

Max. wire capacity (mm)

6.5mm
