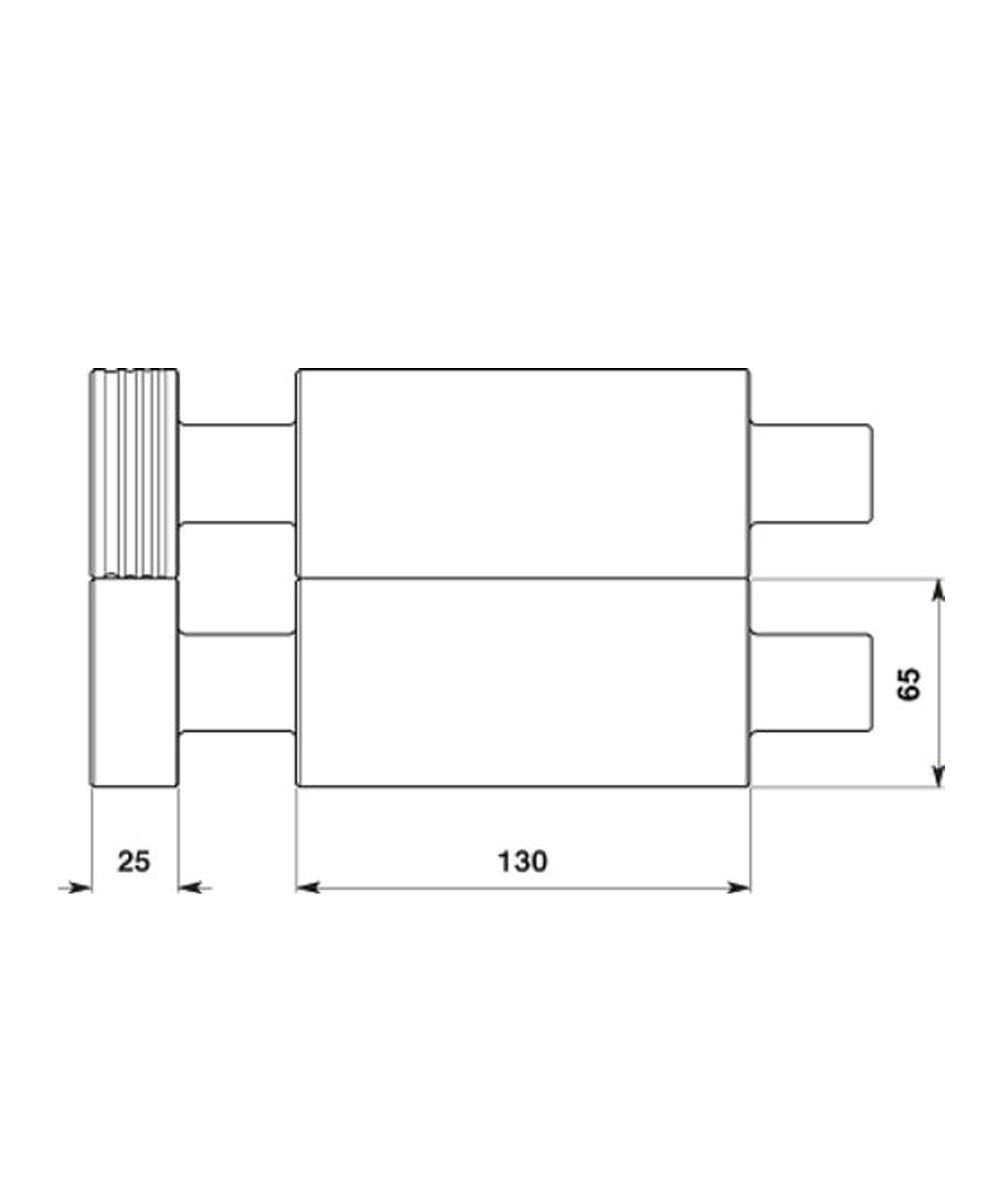

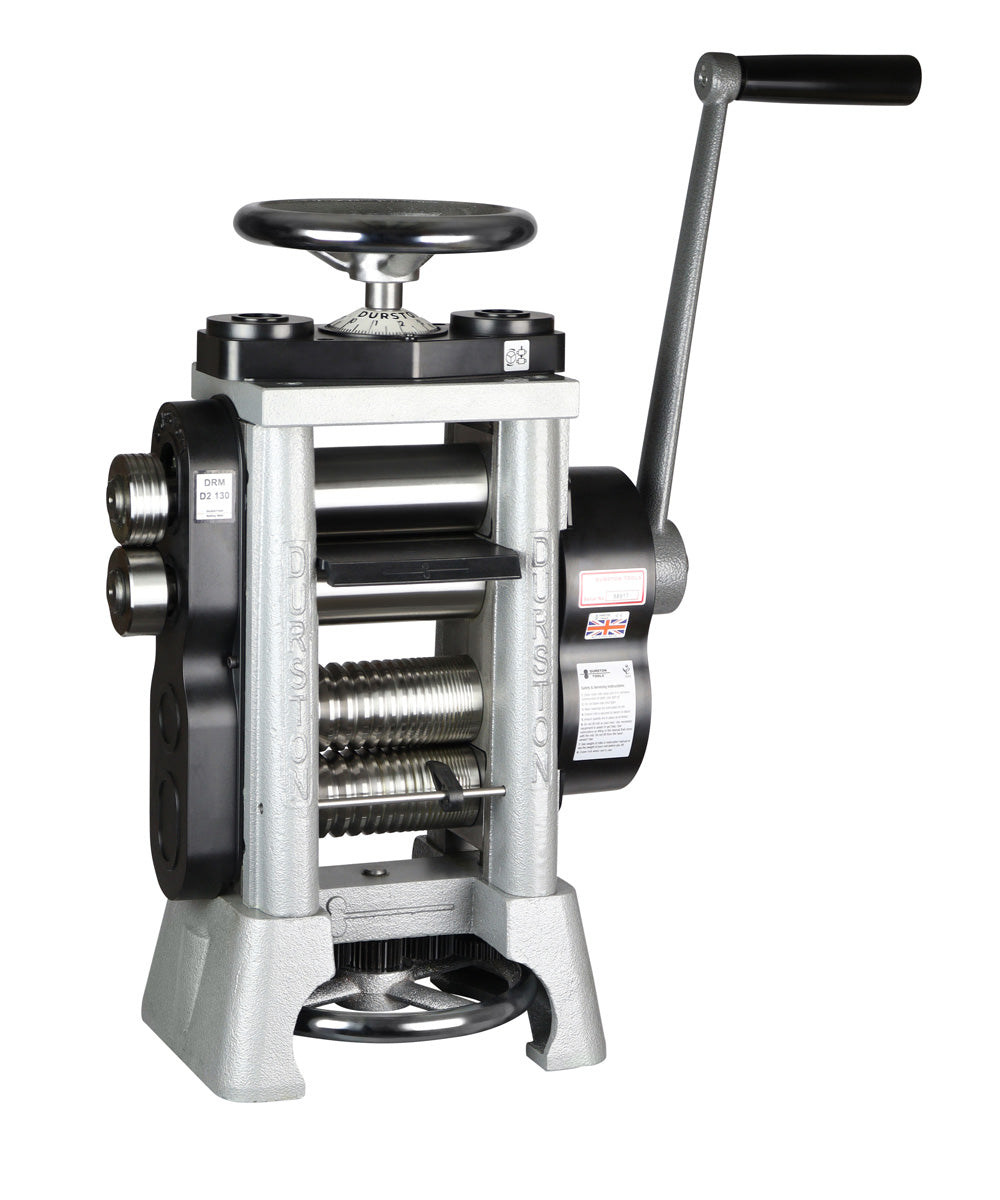

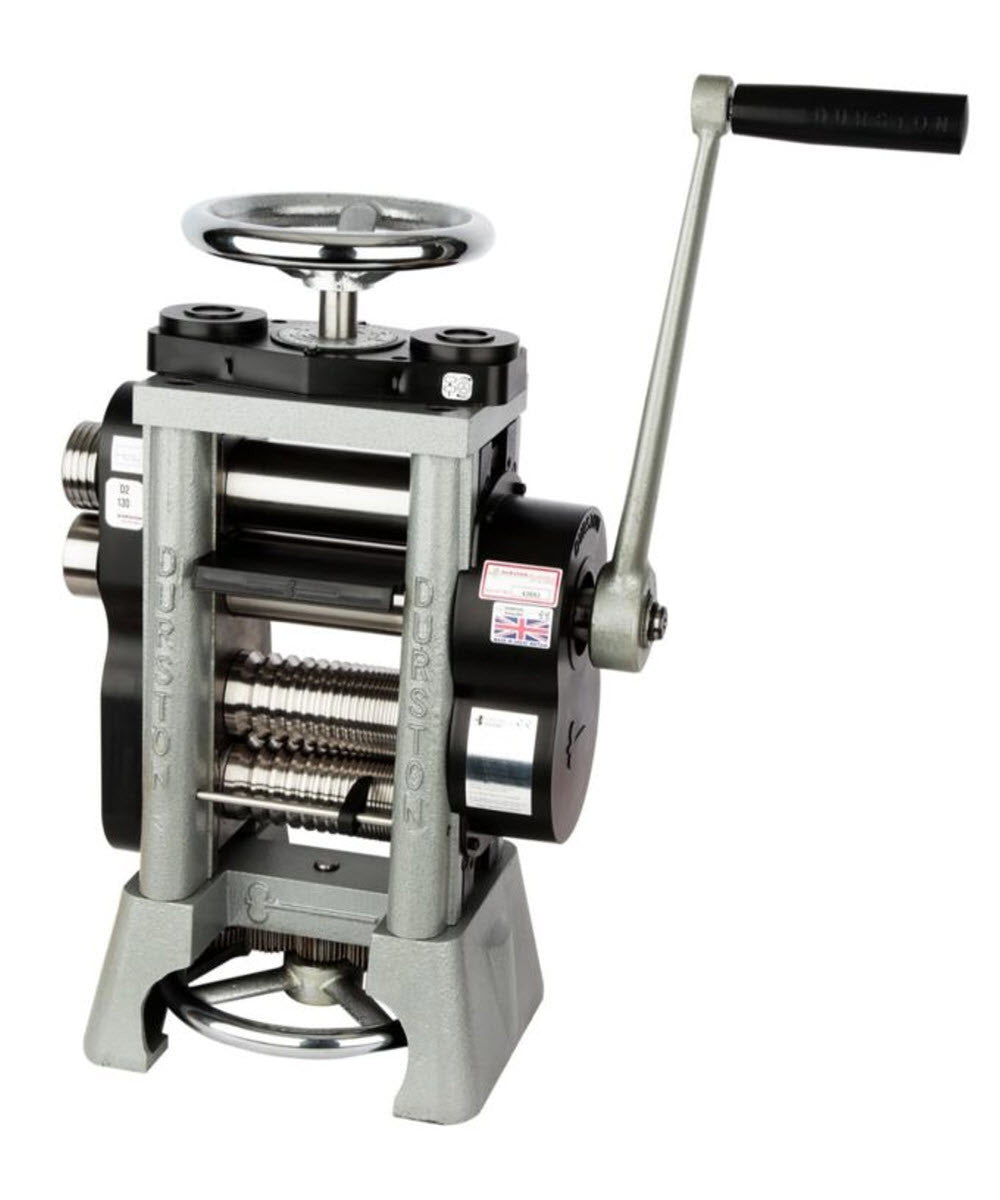

The Double D2 Rolling Mill from Durston is a different mill featuring two sets of rolls; one for flat rolling (having side extension rollers incorporating four half rounds) and the other grooved for the square wire rolling. The excellent gear ratios offer 7-1 load reduction on flat rolling and 3.5-1 for wire rolling, and enables a smooth manual operation with minimal effort. The extra-wide flat area means a full 130mm rolling surface is accessible, while the grooved rollers provider 19 square wire grooves ranging from 10mm to 1mm. The side extensions provide four half rounds in 4, 3, 2 and 1.5 mm. This mill is Durston’s first incorporating roller bearings. For additional safety, all gearing is covered with plastic housing and the large, easy-read calibrated discs and guide plates ensure safe operation through this mill’s long lifetime.

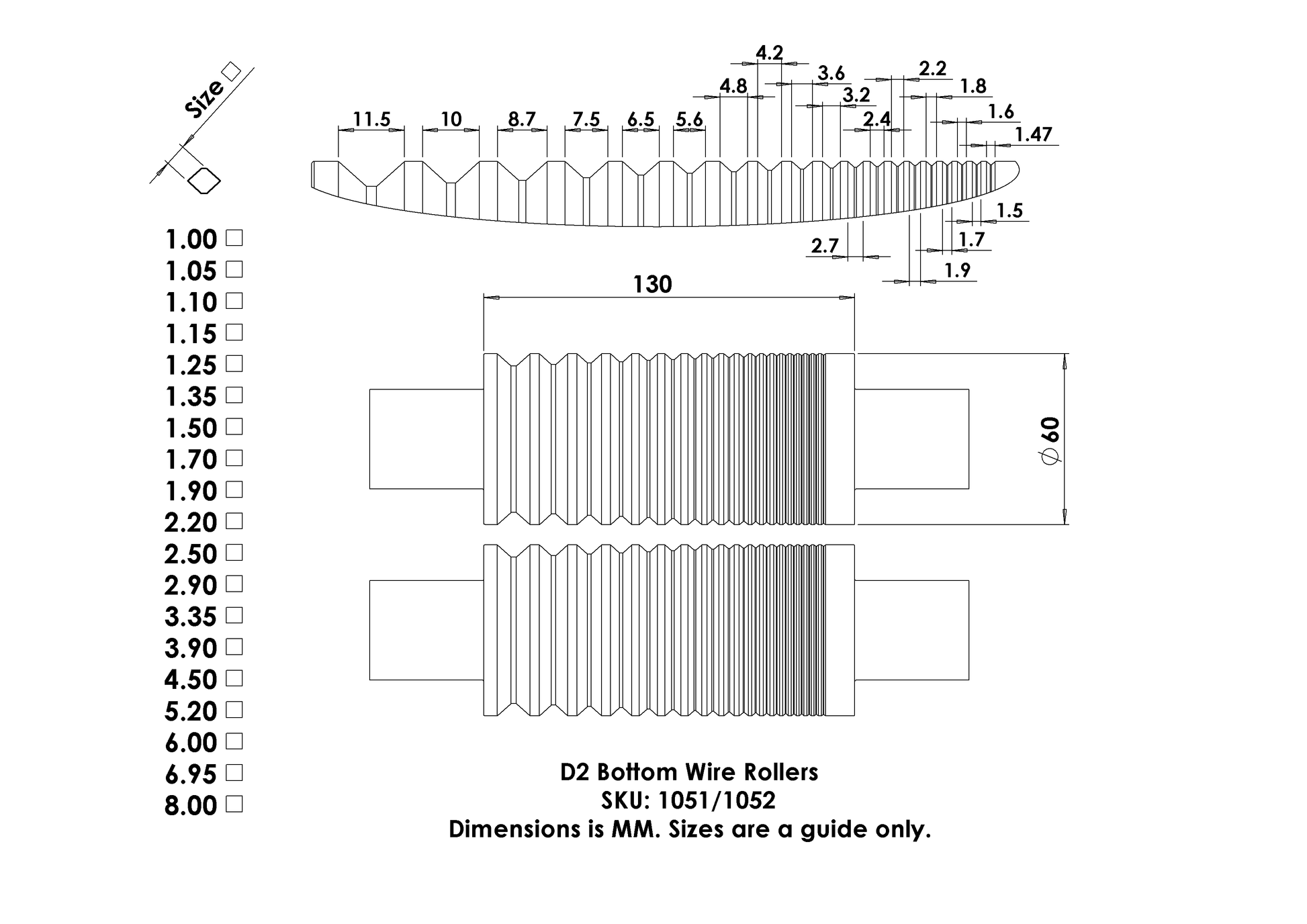

Wire Roll Groove Sizes: 1, 1.05, 1.1, 1.15, 1.25, 1.35, 1.50, 1.70, 1.90, 2.20, 2.50, 2.90, 3.35, 3.90, 4.50, 5.20, 6, 6.95, 8mm
Additional Resources:
Additional or Replacement Extension Rollers available for this model:
Extension Roller 8, 6 & 3mm for Double Rolling Mills
Extension Roller 10 & 7mm for Double Rolling Mills
Extension Roller 4, 3, 2 & 1.5mm for Double Rolling Mills (Included as standard)
Extension Roller Plain for Double Rolling Mills (Included as standard)
Please read our Rolling Mill FAQs tab for more information.
