Durston

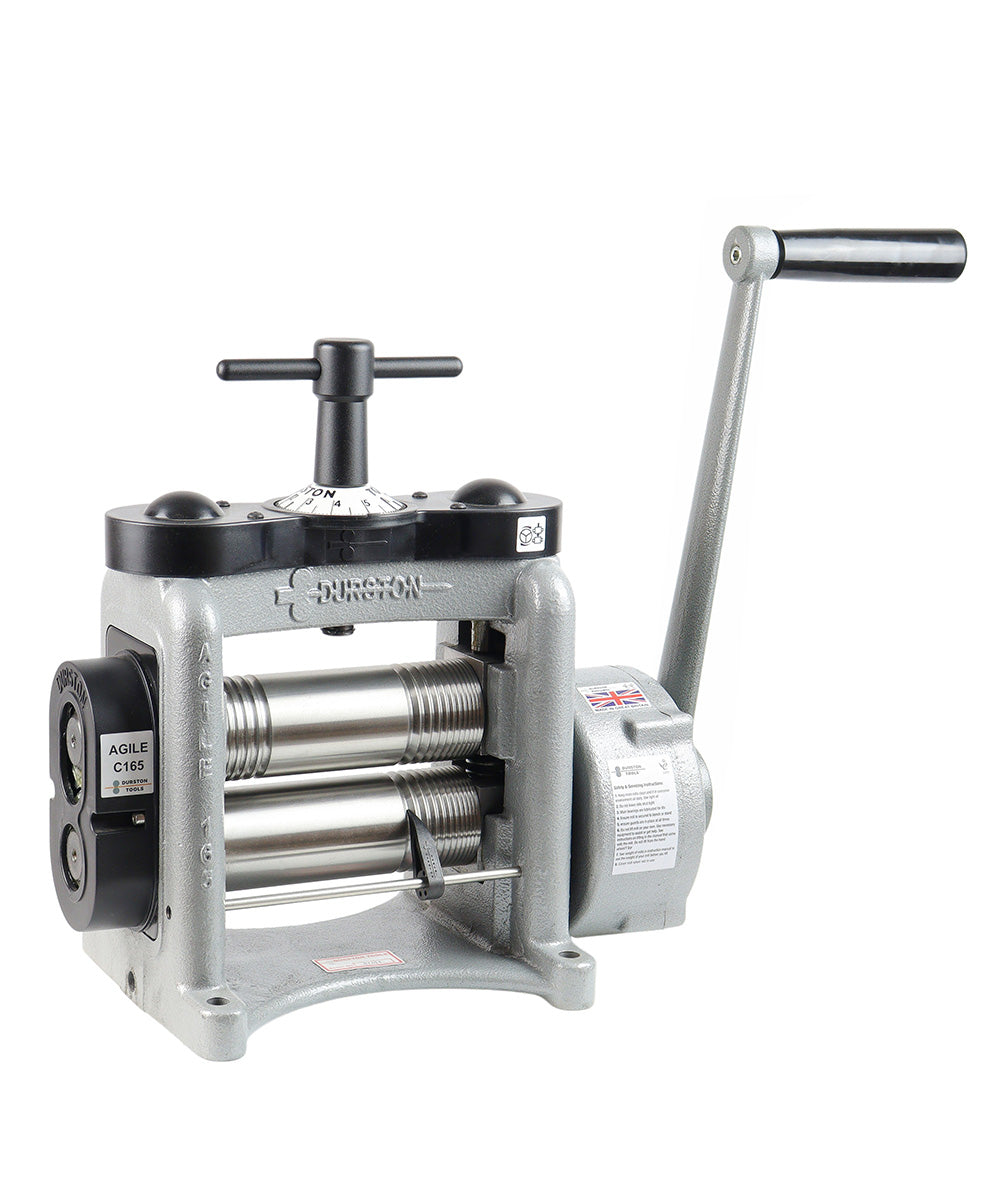

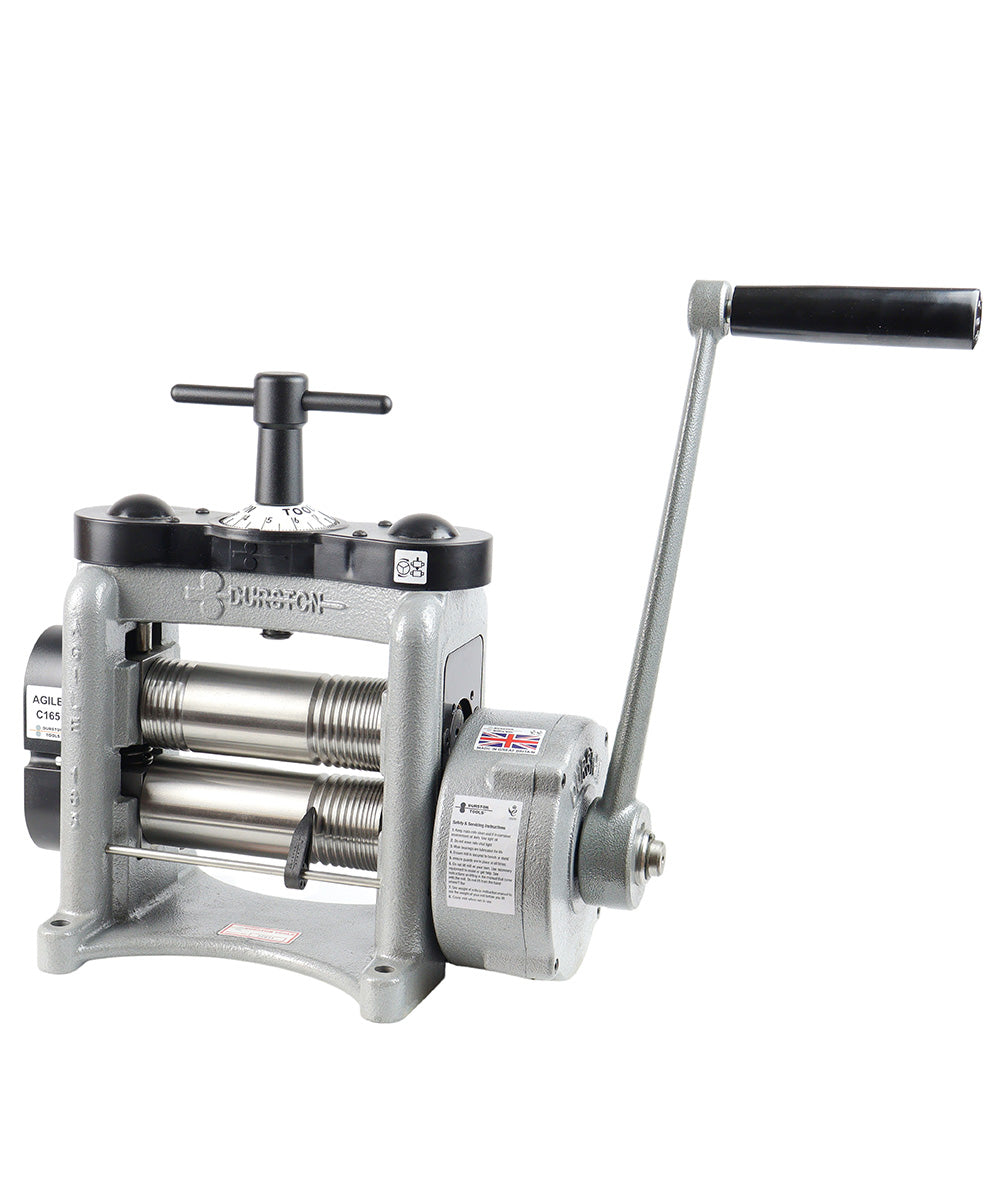

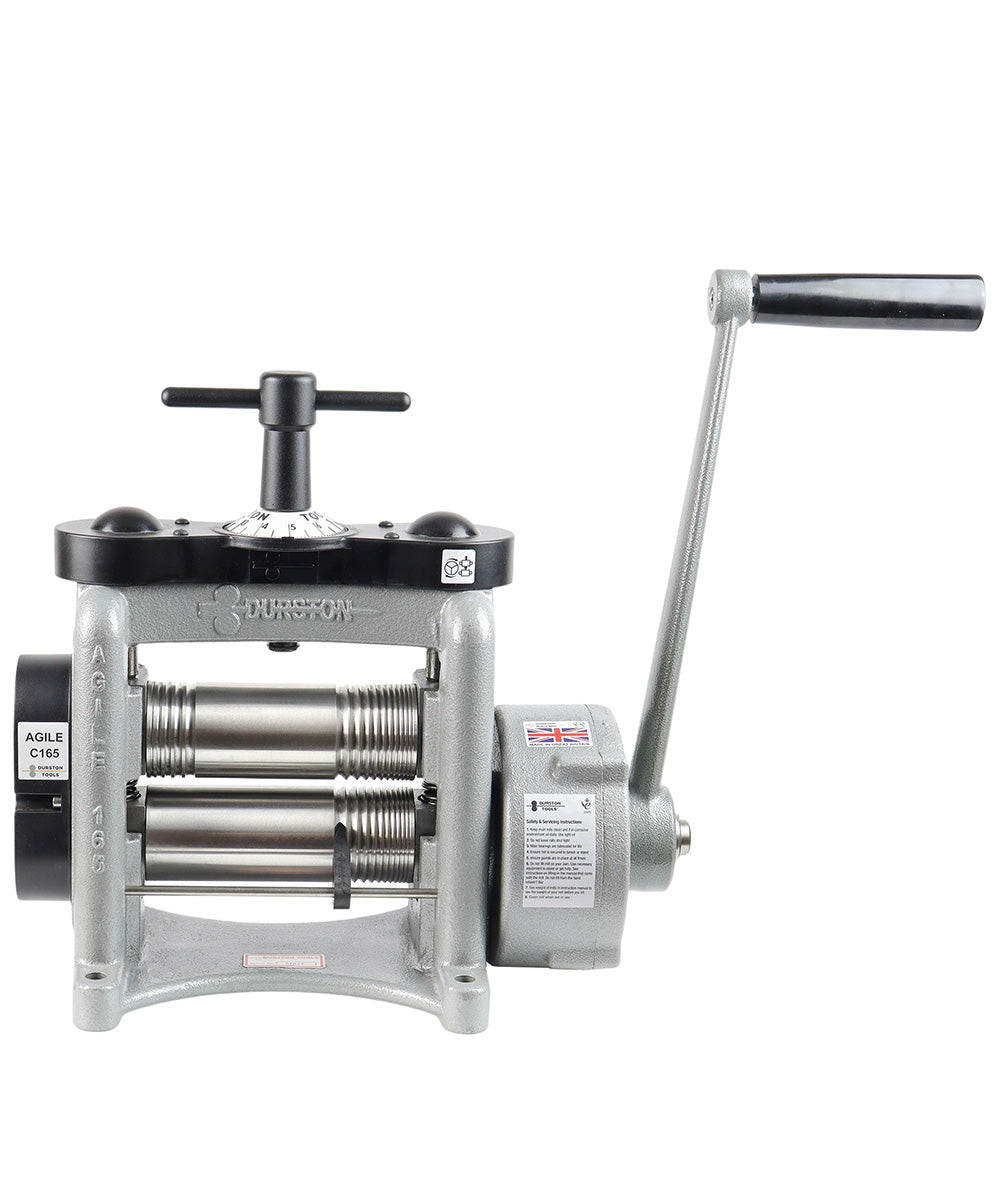

Agile C165

Agile C165

Regular price £1,518.00 GBP
Regular price Sale price £1,518.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

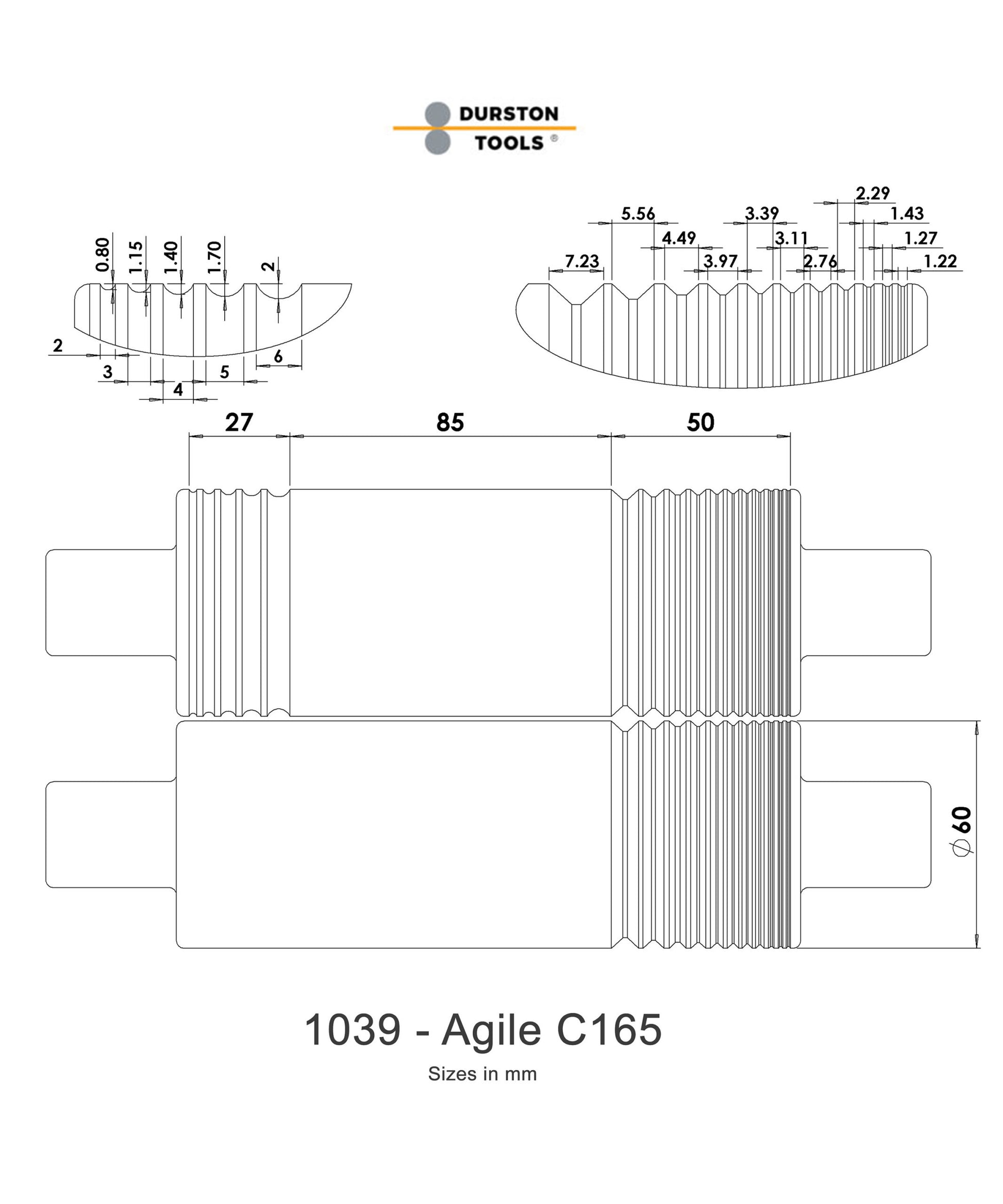

Durston’s massive capacity Agile C165 continues the Durston tradition of super strong design to support each load effortlessly, with no compromise on quality. You’ll find 5 half-rounds as part of the main roller with a huge 85mm flat area and 11 square grooves.

Durston’s massive capacity Agile C165 continues the Durston tradition of super strong design to support each load effortlessly, with no compromise on quality. You’ll find 5 half-rounds as part of the main roller with a huge 85mm flat area and 11 square grooves. The Agile C165 matches the rest of the Durston range with rolls that are specially induction hardened to 64 RC and the main barrel to a depth of 6mm, giving you a lifetime of service. Durstons are proud to manufacture all our rolling mills in-house to ensure strict quality control. We machine, harden and grind the rolls in our High Wycombe factory. The bearing blocks are fully supported, self-lubricating and completely maintenance-free – giving the best possible rolled finish. Durston’s unrivalled five-to-one gearbox makes for easy turning, while behind the cover, you’ll find two specially formed gears to make rolling even smoother. Safety features include a protective guard around the top gears. The Agile C165 Rolling Mill – part of Durston’s award-winning range of products, available since 1961.

Additional Resources:


Manual Rolling Mill Comparison Chart.Quickly see the differences between our manual rolling mills in one clear chart.View the comparison chart here.
Weight 42.95 kg
Dimensions 50 × 32 × 46 cm
Product Weight (kg)

39.7KG

Product Length (mm)

435

Product Width (mm)

220

Product Height (mm)

365

Gearbox

5-to-1 gearbox

Number of Grooves

11

Half round sizes (mm)

3 & 2mm, 4, 5, 6

Roller Type

Combination

Roller diameter (mm)

60

Roller Length (mm)

165

Side Extensions

None

Max. wire capacity (mm)

8mm

Range

Agile
